概 述
SA型泵是单级双吸中开式离心泵、供输送水和物理化学性质类似于水的液体之用。本泵扬程从
型号表示的意义；如10SA—6JB
10—吸入口径被25除（即吸入口径位250毫米）
SA—单级双吸离心泵
6—转数被10除后的圆整数
J—泵转速改变（最大直径时不表示）
B—泵叶轮外径的改变（最大直径时不表示）
泵轴旋转方向；从电机端看为逆时针方向、即吸入口在左、吐出口在右。用户若有更改转向、增加轴伸、改变轴封方式、更换过流部件材质等要求，均可与本厂协商。
General
Type SA pumps are sigle stage double suction double suction certrifugal pumps with horizontally splitcasing. They are provided for delivering clear water or other liquids which are phtsically and chemicallv similar to clear water.
When its total head varies from
(for example obtained 10SA—6JB)
10—the number obtained from the inlet diameter divided by 25 (inlet diamerter is
SA--single stage double suction centrifugal pump.
6—the number obtained from the specific specific speed divided by 10
J—The revolutions perminute of the pump has been changed. (NO indication when maintaining the orginal rotation speed)
B—Outer dia. Of impeller changeable. (No indication when with maximum diameter ) Rotating direction of pump shaft. The rotation of shaft is counter cockwise looking from motor end. Pump’ s inlet is on the leftside and outlt is on the rightside.if the client wants to change the rotating direction, to increase the number of shaft extension, to change the way of shaft sealing or the materials of the components by which the liquid passed, our works would Like to acheve the order under favourable discussion.

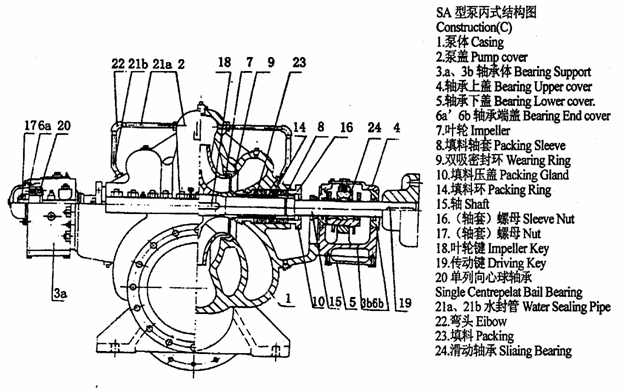

结构图 Sectional Arrargement

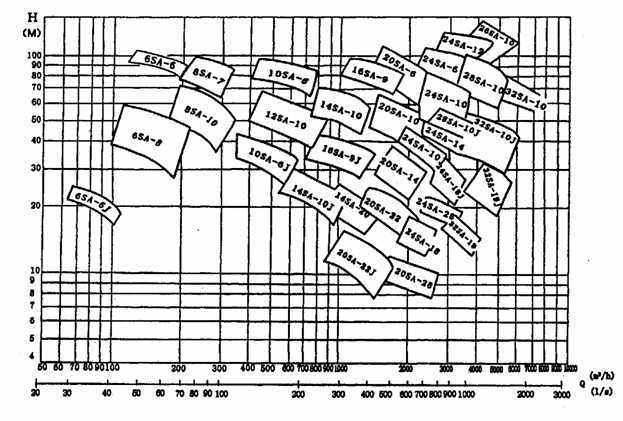

型谱图 Performance Charts
性能表 The performance data
|
|
流量 Q |
扬程 H |
转速 n |
轴功率 Pa |
配带电动机 |
效率 η |
必需 汽蚀 余量 |
叶轮 名义 直径 |
泵 重 | ||
|
功率 |
型号 | ||||||||||
|
m3/h |
1/s |
m |
r/min |
kw |
kw |
% |
m |
mm |
kg | ||
|
6SA-6 (S150-97) |
126 180 216 |
35 50 60 |
104 97 87 |
2980 |
48.8 59.5 64.8 |
75 |
Y280S-2 |
73 80 79 |
3.0 3.8 5.3 |
270 |
150 |
|
6SA (S150 |
119 170 204 |
33 47.2 56.6 |
91 84.5 76 |
2980 |
42 50.1 54.8 |
75 |
Y280S-2 |
70 78 77 |
3.0 3.7 4.7 |
255 |
150 |
|
6SA-6J (S150-97B) |
72 90 108 |
20 25 30 |
24 22.5 20 |
1480 |
6.45 7.45 8.4 |
11 |
Y |
73 74 70 |
2.6 2.7 2.9 |
270 |
150 |
|
6SA-8 (S150-50) |
108 160 193 |
30 44.5 53.5 |
58 55 52 |
2980 |
24.6 30.1 33.3 |
37 |
Y |
69 81 82 |
2.9 3.8 4.4 |
205 |
110 |
|
6SA (S150 |
108 144 174 |
30 40 48.3 |
45 43 39 |
2980 |
18.2 21.2 23.1 |
30 |
Y |
73 80 80 |
2.9 3.6 4.1 |
185 |
110 |
|
6SA-8B (S150-50B) |
108 133 160 |
30 36.9 44.5 |
40 38 34 |
2980 |
15.86 17.7 19.4 |
22 |
Y |
74 78 77 |
2.7 3.1 3.4 |
170 |
110 |
|
8SA-7 (S200-95) |
216 280 336 |
60 77.78 93.5 |
99 95 87 |
2980 |
78.6 90.8 101 |
132 |
Y |
74 80 79 |
4.0 4.7 6.6 |
272 |
215 |
|
8SA (S200 |
210 262 314 |
58.4 72.78 87.2 |
87 83 74 |
2980 |
68.1 76.9 83.3 |
110 |
Y315S-2 |
73 77 76 |
4.0 4.5 5.7 |
255 |
215 |
|
8SA-7B (S200-95B) |
196 247 300 |
55 68.61 83.4 |
76 73 63 |
2980 |
57 64.6 71.4 |
75 |
Y280S-2 |
72 76 72 |
4.0 4.2 5.4 |
240 |
215 |
|
8SA-10 (S200-63) |
194 280 351 |
54 77.78 97.50 |
71 63 52 |
2980 |
52.0 59.3 65.4 |
75 |
Y280S-2 |
72 81 76 |
2.8 4.1 5.3 |
235 |
235 |
|
8SA (S200 |
180 259 324 |
50 71.94 90 |
58 52 41 |
2980 |
40.6 46.5 50.2 |
55 |
Y |
70 79 72 |
2.7 3.8 4.9 |
217 |
235 |
性能表 The performance data
|
|
流量 Q |
扬程 H |
转速 n |
轴功率 Pa |
配带电动机 |
效率 η |
必需 汽蚀 余量 |
叶轮 名义 直径 |
泵 重 | ||
|
功率 |
型号 | ||||||||||
|
m3/h |
1/s |
m |
r/min |
kw |
kw |
% |
m |
mm |
kg | ||
|
8SA-10B （S200-63B） |
173 239 288 |
48 66.4 80 |
48 44 36 |
2980 |
32.2 36.6 38.2 |
45 |
Y |
70 78 74 |
2.6 3.5 4.2 |
200 |
235 |
|
10SA-6 |
432 540 720 |
120 150 200 |
96 94 89 |
1480 |
152.6 177.2 215 |
250 |
Y355-39-4 |
74 78 81 |
5.1 6.3 9.2 |
530 |
600 |
|
10SA |
432 540 720 |
120 150 200 |
85.3 84 76 |
1480 |
129.3 154.5 186.3 |
220 |
Y355-37-4 |
77.6 80 80 |
5.1 6.3 9.2 |
500 |
600 |
|
10SA-6B |
432 540 720 |
120 150 200 |
76.4 74 67 |
1480 |
121.5 137.8 164.3 |
185 |
Y |
74 79 80 |
5.1 6.3 9.2 |
470 |
600 |
|
10SA-6J （10SA |
400 500 600 |
111.1 138.8 166.6 |
42 39 35 |
980 |
58.7 65.6 72.5 |
90 |
Y315M1-6 |
78 81 79 |
3.6 4.7 6.6 |
530 |
600 |
|
10SA （10SA-6D） |
400 500 600 |
111.1 138.8 166.6 |
36.8 36 33 |
980 |
39.4 49.7 56.2 |
75 |
Y315S-6 |
76.4 79 80 |
3.3 3.6 4.7 |
500 |
600 |
|
10SA-6JB （10SA-6E） |
400 500 600 |
111.1 138.8 166.6 |
33 32 28 |
980 |
34.8 44.1 48.3 |
55 |
Y |
77.5 79 79 |
3.3 3.6 4.7 |
470 |
600 |
|
10SA |
400 500 600 |
111.1 138.8 166.6 |
66.4 65.6 62.5 |
1480 |
95.2 113.1 131 |
160 |
Y315S-4 |
76 79 78 |
4.6 5.7 7.5 |
436 |
600 |
|
14SA-10 |
900 1080 1260 |
250 300 350 |
70 68 64 |
1480 |
206.5 230 250 |
315 |
Y355L2-4 |
83 87 88 |
4.1 4.6 5.4 |
466 |
1210 |
|
14SA |
900 1080 1260 |
250 300 350 |
60 58 54 |
1480 |
175 196 213 |
250 |
Y355M2-4 |
84 87 87 |
5.1 6.3 6.9 |
440 |
1210 |
|
14SA-10B |
900 1080 1260 |
250 300 350 |
51 48 44 |
1480 |
149 162.2 179.7 |
220 |
Y355M1-4 |
84 87 84 |
5.1 6.3 6.9 |
425 |
1210 |
性能表 The performance data
|
|
流量 Q |
扬程 H |
转速 n |
轴功率 Pa |
配带电动机 |
效率 η |
必需 汽蚀 余量 |
叶轮 名义 直径 |
泵 重 | ||
|
功率 |
型号 | ||||||||||
|
m3/h |
1/s |
m |
r/min |
kw |
kw |
% |
m |
mm |
kg | ||
|
14SA-10J （14SA |
650 800 1000 |
180.56 222.22 277.78 |
30 28 24 |
980 |
62.48 70.12 76.90 |
90 |
Y |
85 87 85 |
1.79 2.21 3.16 |
466 |
1210 |
|
14SA-10JA （14SA-10D） |
600 720 900 |
166.6 200 250 |
27 25 22 |
980 |
53.13 56.34 63.44 |
75 |
Y315S-6 |
83 87 85 |
1.69 2.06 2.75 |
440 |
1210 |
|
（14SA-10E） |
600 720 900 |
166.6 200 250 |
23 21 18 |
980 |
44.2 47.3 53.1 |
75 |
Y315S-6 |
85 87 83 |
1.69 2.06 2.75 |
425 |
1210 |
|
|
450 547 684 |
125 152 190 |
15.6 14.5 12.7 |
740 |
22.75 25.1 27.8 |
37 |
Y280S-8 |
84 86 85 |
2.8 2.8 2.8 |
440 |
1210 |
|
16SA-9 |
1080 1260 1620 |
300 350 450 |
97.6 96 90 |
1480 |
400 428 473 |
630 |
Y450-4 |
71.6 77 84 |
5.2 5.9 7.9 |
535 |
1910 |
|
16SA |
1080 1260 1620 |
300 350 450 |
85.8 85 78 |
1480 |
346 370 410 |
450 |
Y400-4 |
73 79 84 |
5.2 5.9 7.9 |
510 |
1910 |
|
16SA-9B |
1080 1260 1620 |
300 350 450 |
78 76 68 |
1480 |
298 318 349 |
450 |
Y400-4 |
77 82 86 |
5.2 5.9 7.9 |
480 |
1910 |
|
16SA-9J （16SA |
900 1080 1260 |
250 300 350 |
40 40 38 |
980 |
124 140 155.3 |
185 |
Y |
79 84 84 |
4.6 4.9 5.2 |
535 |
1910 |
|
16SA-9JA （16SA-9D） |
900 1080 1260 |
250 300 350 |
37 35 32 |
980 |
112 123 131 |
160 |
Y |
81 84 84 |
4.6 4.9 5.2 |
510 |
1910 |
|
（16SA-9E） |
800 900 1080 |
222.22 250 300 |
33 32 30 |
980 |
89 95 102.5 |
110 |
Y |
80 83 86 |
4.6 4.6 4.9 |
480 |
1910 |
|
20SA-22 |
1368 1980 2304 |
380 550 640 |
26.5 21 17.5 |
980 |
122 133.2 137.2 |
160 |
Y |
80 85 80 |
4.4 5.2 5.8 |
466 |
1610 |
性能表 The performance data
|
|
流量 Q |
扬程 H |
转速 n |
轴功率 Pa |
配带电动机 |
效率 η |
必需 汽蚀 余量 |
叶轮 名义 直径 |
泵 重 | ||
|
功率 |
型号 | ||||||||||
|
m3/h |
1/s |
m |
r/min |
kw |
kw |
% |
m |
mm |
kg | ||
|
20SA |
1260 1800 2088 |
350 500 580 |
21 16 12.4 |
980 |
90 92.3 88.1 |
110 |
Y |
80 85 80 |
4.3 4.9 5.4 |
425 |
1610 |
|
20SA-22J （20SA-22B） |
1080 1450 1800 |
300 402.7 500 |
16.3 14 10.7 |
740 |
61.5 65 66.8 |
90 |
Y |
78 85 78.5 |
2.8 4.0 7.1 |
466 |
1610 |
|
20SA-22JA （20SA |
1080 1300 1672 |
300 361 452 |
10.3 9.5 6.8 |
740 |
37 41 38.6 |
55 |
Y315S-8 |
82 85 78 |
2.8 3.5 5.6 |
425 |
1610 |
|
24SA-10 |
2592 3420 3600 |
720 950 1000 |
78 71 69 |
980 |
643.9 738.8 760 |
900 |
Y500-6 |
85.5 89.5 89 |
5.6 9.1 10.1 |
725 |
4100 |
|
24SA-10J（24SA |
2160 2700 2970 |
600 750 825 |
43 39 36 |
740 |
290.7 322.2 334.6 |
400 |
Y450-8 |
87 89 87 |
5.6 5.9 8.2 |
725 |
4100 |
|
24SA-10B |
2338 3084 3248 |
649 856.6 902.2 |
63.5 57.8 56.2 |
980 |
472.8 545.4 558.5 |
630 |
Y450-6 |
85.5 89 89 |
4.6 7.3 8.2 |
655 |
4100 |
|
24SA-12 |
3000 3750 3996 |
833 1041 1198 |
128 120 113 |
1500 |
1260 1425 1500 |
1600 |
|
83 86 82 |
6.2 7.6 8.4 |
640 |
5400 |
|
24SA-18 |
2700 3240 3600 |
750 900 1000 |
35.1 32.6 29.76 |
980 |
310.9 330.1 341.2 |
400 |
Y400-6 |
83.1 87 85.5 |
4.5 5.15 6.12 |
550 |
3300 |
|
24SA |
2520 3000 3165 |
700 833.3 879 |
25.5 23 19.2 |
980 |
206 211 204 |
250 |
Y |
85 89 84 |
6.0 6.4 81 |
490 |
3300 |
|
24SA-18J （24SA-18B） |
2052 2466 2836 |
570 685 787 |
20.3 18.9 16.1 |
740 |
136.6 145.6 147.4 |
160 |
Y |
83.1 87.2 84.4 |
2.83 3.19 4.03 |
550 |
3300 |
|
24SA-18JA （24SA |
1908 2000 2520 |
530 555.5 700 |
14.7 13.5 11.2 |
740 |
90 86.5 88.3 |
110 |
Y |
84.5 85 87 |
3.2 3.7 4.4 |
490 |
3300 |
|
*24SA-18D |
2160 3240 3450 |
600 900 958 |
23.2 16 14.2 |
740 |
166 166 163 |
200 |
Y4002-8 |
82 85 81.6 |
4.7 5.1 5.5 |
539 |
3300 |
性能表 The performance data
|
|
流量 Q |
扬程 H |
转速 n |
轴功率 Pa |
配带电动机 |
效率 η |
必需 汽蚀 余量 |
叶轮 名义 直径 |
泵 重 | ||
|
功率 |
型号 | ||||||||||
|
m3/h |
1/s |
m |
r/min |
kw |
kw |
% |
m |
mm |
kg | ||
|
24SA |
1800 3000 3375 |
500 833 937 |
33.3 26.6 23.3 |
980 |
242.2 263.3 263.7 |
280 |
Y |
67.4 82.7 81.2 |
4.56 5.97 6 |
510 |
3300 |
|
26SA-10 |
3340 4.35 4345 |
927.8 1120.8 1206.9 |
141 130 123 |
1500 |
1526 1680 1753 |
1800 |
|
84 85 83 |
6.3 7.8 8.6 |
695 |
6200 |
|
28SA-10 |
4536 5292 6350 |
1260 1470 1764 |
94 90 77 |
980 |
1451 1544 1624 |
1800 |
Y630-6 |
80 84 82 |
8 10.4 14.8 |
840 |
5800 |
|
28SA |
4183 4881.6 5857 |
1162 1356 1627 |
80 76.6 65.5 |
980 |
1169 1227 1275 |
1400 |
Y560-6 |
78 83 82 |
7.2 9.2 13.2 |
775 |
5800 |
|
28SA-10J |
3362 3922 4707 |
933.9 1089 1307 |
51.6 49.4 42.3 |
740 |
590 628 661 |
710 |
Y500-8 |
80 84 82 |
5.8 6.8 9.2 |
840 |
5800 |
|
28SA-10JA |
3102 3618 4343 |
862 1005 1206 |
43.9 42 36 |
740 |
463 498 519 |
630 |
Y500-8 |
80 83 82 |
5.6 6.1 8 |
775 |
5800 |
|
28SA-10K |
2736 3600 4140 |
760 1000 1150 |
53 51 47 |
740 |
556 617 646 |
710 |
Y500-8 |
71 81 82 |
4 5 6 |
848 |
5800 |
|
32SA-10 （32SA |
6300 8280 9900 |
1750 2300 2750 |
73.5 67.5 57.5 |
740 |
1510 1720 1856 |
2240 |
Y710-8 |
83 88.5 83.5 |
5.9 7.0 8.5 |
990 |
8300 |
|
32SA-10B |
5940 7920 9540 |
1650 2200 2450 |
67.8 62.5 52.5 |
740 |
1321 1523 1643 |
1800 |
Y710-8 |
83 88.5 83 |
5.8 6.7 8.5 |
950 |
8300 |
|
32SA |
5760 7200 8820 |
1600 2000 2450 |
59 53.5 46.5 |
740 |
1128.6 1213 1370 |
1600 |
Y630-8 |
82 86.5 81.5 |
5.3 6.3 7.5 |
885 |
8300 |
|
32SA-10J （32SA-10JA） |
4860 6480 8100 |
1350 1800 2250 |
48.3 44.2 35.5 |
590 |
780 881 960 |
1120 |
Y630-10 |
82 88.5 81.5 |
3.7 4.2 4.3 |
990 |
8300 |
|
32SA-10JB （32SA-10D） |
4680 6300 7740 |
1300 1750 2150 |
44 40.5 33 |
590 |
684 785 848 |
1000 |
Y630-10 |
82 88.5 82 |
3.6 4 5 |
950 |
8300 |
|
32SA-10JC |
3960 5400 6480 |
1100 1500 1800 |
31.5 28.5 24 |
495 |
414 474 510 |
560 |
Y560-12 |
82 88.5 83 |
2.8 3.1 3.6 |
952 |
8680 |
性能表 The performance data
|
|
流量 Q |
扬程 |
转速 |
轴功率 |
配带电动机 |
效率 |
必需 汽蚀 余量 |
叶轮 名义 直径 |
泵 重 | ||
|
功率 |
型号 | ||||||||||
|
m3/h |
1/s |
m |
r/min |
kw |
kw |
% |
m |
mm |
kg | ||
|
32SA-19 |
4390 5400 5760 |
1219 1500 1600 |
33.3 29 26.3 |
740 |
470 473.8 485.3 |
560 |
Y500-8 |
84.6 90 85 |
6.3 8.2 10.3 |
708 |
6000 |
|
32SA |
4170 5000 5470 |
1158 1388 1519.4 |
29.3 26 23.7 |
740 |
391 393.3 415.3 |
500 |
Y500-8 |
85 90 85 |
6.1 7.2 9.3 |
670 |
6000 |
|
32SA-19B |
3654 4700 5220 |
1015 1305.5 1450 |
23.7 20 17 |
740 |
275.8 284.5 282 |
355 |
Y450-8 |
85.5 90 85.5 |
6.0 6.3 8.2 |
616 |
6000 |
|
32SA-19E |
4320 5278 6034 |
1200 1466 1676 |
36.8 33.8 29.6 |
740 |
512.3 545.8 559 |
630 |
Y500-8 |
94.5 89 87 |
5.9 6.4 9.4 |
730 |
6000 |
|
32SA-19J |
3456 4320 4615 |
960 1200 1282 |
21.6 18.6 17 |
590 |
231.5 243.1 254 |
280 |
Y450-10 |
87.8 90 84.1 |
3.5 5.0 6.4 |
708 |
6000 |
|
32SA-19JA (32SA |
3240 4000 4320 |
900 1111 1200 |
19.1 16.5 15.2 |
590 |
192.6 199.7 204.3 |
250 |
Y450-10 |
87.5 90 87.5 |
4.0 4.5 6.1 |
670 |
6000 |
|
32SA-19JB (32SA-19D) |
2880 3800 3960 |
800 1055 1100 |
15.8 13 11.8 |
590 |
146.6 151.1 147.10 |
200 |
Y450-10 |
84.5 89 86.5 |
3.9 4.0 4.4 |
616 |
6000 |
|
32SA |
3726 4705 5407 |
1035 1307 1502 |
26.5 23 19 |
740 |
323.9 335 341.1 |
400 |
Y450-8 |
83 88 82 |
6.1 7.4 9.2 |
630 |
6000 |

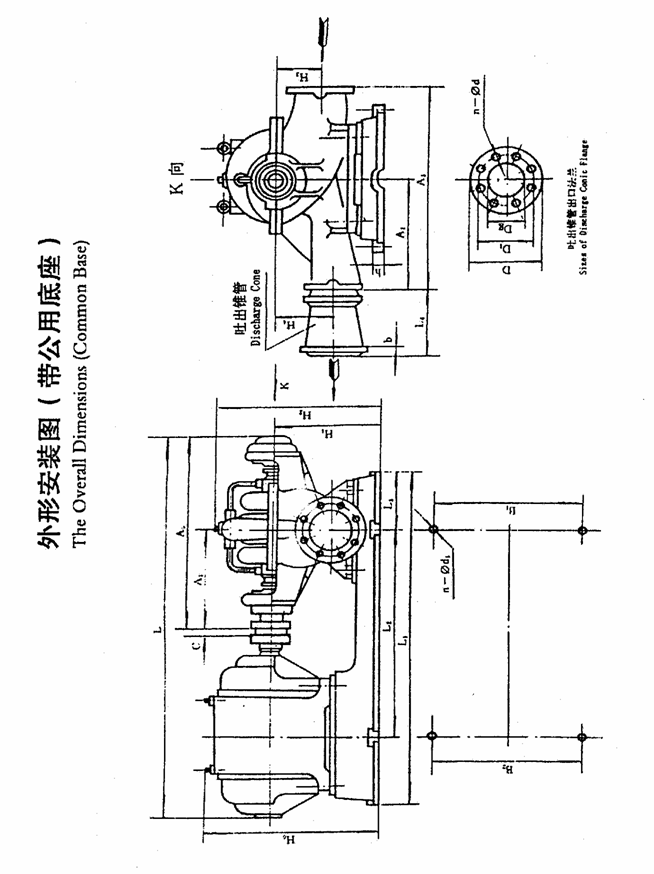

厂址：湖南省长沙市雨花区井奎路17号(原长沙工业泵总厂) 联系电话：0731-84168878 传真: 0731-86456785 24小时联系电话：15874066888
EMAIL：32045080@qq.com Copyright ? 20012-2021 湖南安德理斯泵业有限公司 All rights reserved.
